Features
- FAF1200, PN 16 flanged ball valve is operating by a ball having a hole with the same size as the flow section, through the help of the stem, rotating quarter turn(90 degree) between teflon seats where the ball to be parallel or perpendicular to the flow
- Can be installed
- Through the stainless steel belleville spring reinforced teflon (PTFE) seats, 100% tight sealing is achieved in lowest and highest pressure
- Can be installed directly to the pump without any need for addi- tional intermediary
- The compatibilty of teflon material with various flow types and its resistance to higher temperatures enables it to be used in wide range of
- It is appropriate to be used in fully open or fully closed
- In fully open position, since there is no reduction in flow section, the head loss is nearly
- Can be operated with lower torque
Product Description

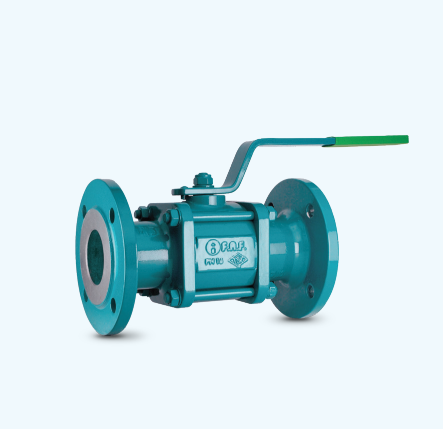

FAF1200 series are robust and reliable flanged ball valves for fit- ting in between PN16 flanges. Body material in cast iron with stainless steel ball and stems are improving the durability of the valve. FAF1200 series are offering a large wide range of applications through to PTFE sealing
