Features

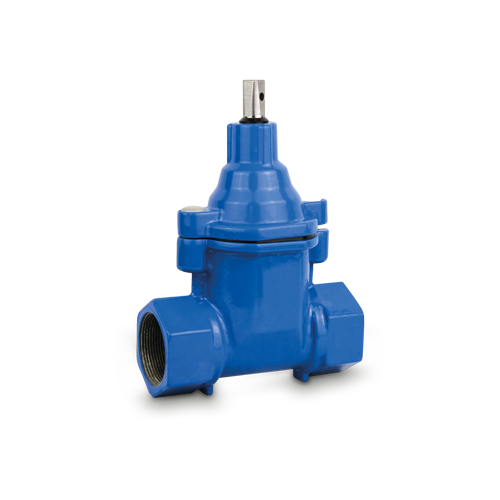

- Threaded gate valve with full bore.
- Stainless steel spindle with rolled thread and bearing.
- Total sufrace rubbered wedge with replaceable spindle nut.
- The body and bonnet are manufactured from ductile iron castings. It is resistant to high tensile stress occurring in pipelines.
- Low operating torque due to plastic sliding guides on the wedge.
- Maintenance-free and corrosion-resistant stem sealing.
- 100% tight sealing is achieved through EPDM covered wedge fully contacting the fusion bonded epoxy coated flow surface.
- Wedge and body guide rails ensure stable operation.
- Stainless steel stem with rolled threads for high strength & low operation torque.
- Full bore characteristics without distruption of flow results in low pressure drops across the valve.
Temperature
- +130 °C (EPDM)
Scope of Application
- Hot & cold water
- Water Treatment Plants
- Pumping stations
- Tanks
- Seawater applications
- Power plants (cooling water pipelines)
- Industry
