Features
- With the start of movement at defined flow direction on the sys- tem, the disc leaves the flow section by turning around its axis and allows the flow
- The disc fixed inside the body in located on the flow
- Sealing is achieved by metal to metal seating. Rubber coated disc is (Optional)
- All external surfaces are primed and painted for corrosion resist-
- Can be installed in either vertical (upward flow only) or horizontal (cover upright)
- Designed with focus on easy access to By unscrewing a few bolts the bonnet assembly including hinge and disc can be removed from the body, and maintenance can be performed.
- Zero stem leakage eliminates media loss and satisfies environmen- tal
- Effective for energy
- Stock piled for quick
Product Description

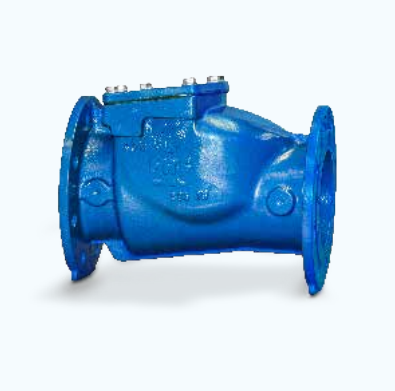

FAF2270 Swing Check Valve is ideal for all basic commercial/indus- trial general backflow prevention applications. Durable ductile iron construction resists pipeline stresses and distortion.
Versions
- Standard version with ductile iron body and disc
- Custom production for specific orders
Scope of Application
- Chamber installation
- Pipelines
- Water treatment plants
- Pumping stations
- Tanks
- Seawater applications
- Power plants
- Industry
